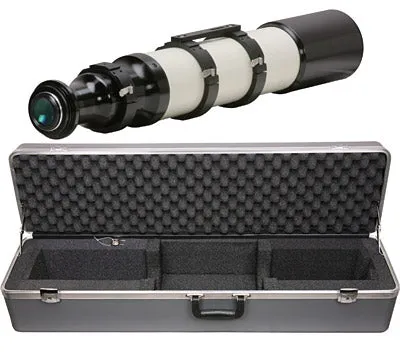

Tele Vue Optics TV-NP127fli Astrograph:
The Ultimate Wide-Field Imaging System
- Tele Vue and FLI Collaboration: A partnership with Finger Lakes Instrumentation to offer a comprehensive wide-field imaging system dedicated to astro-imagers.
- Optimized for ProLine PL16803 Camera: The NP127fli's flat-field, fast focal ratio, and short focal length perfectly complement the PL16803 camera for over 4° of sharp stellar fields.
- Centrally Positioned Atlas Focuser: Designed to place the Atlas focuser near the center of its travel for optimal performance.
- Integrated Large Field Corrector: Tele Vue's corrector lens within the Atlas focuser accommodates the path length of FLI's CenterLine filter wheel and ProLine cameras.
- Zero Tilt Adapter System: Ensures stable and precise connections using FLI’s system, eliminating alignment issues.
- Image Plane Tilt Correction: Features Tele Vue’s unique correction mechanism in the NP127fli's rear section, ensuring flawless image alignment.
- Precision Factory Setup: Each scope is meticulously adjusted at Tele Vue to ensure near-perfect setup for the imaging train.
- User Adjustability: Built-in adjustability accommodates differences in customers' existing equipment, allowing for tailored fine-tuning.
- Astrograph for Serious Imagers: An ideal solution for advanced astro-imagers seeking top-notch performance and wide-field imaging capabilities.
Specifications
| Type | APO (Nagler-Petzval) Refractor with Large Field Co (Elements/Groups: 5/3) |
| Objective (mm) | 127 |
| Focal Length (mm) | 680 |
| Focal Ratio (f/#) | 5.3 |
| Length OTA (inch) | 35.8 (without FLI hardware) |
| Maximum Imaging Field (deg.) | 4.3 (52mm diagonal chip) |
| Weight OTA (lbs) | 15.7 |
What's in the Box?
- Image plane tilt correction system
- Built-in Tele Vue Large Field Corrector lens
- Screw-on metal lens cover
- Rings with 3 point mounting
- Hard-shell carry case
