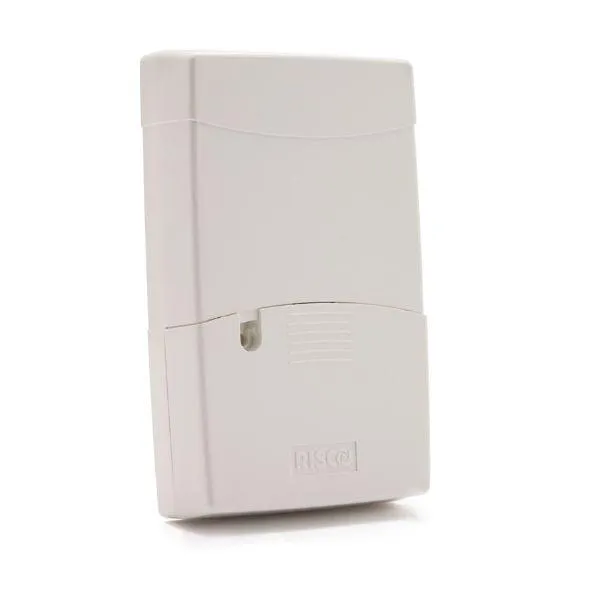

The Wireless Video Module supports up to 32 RISCO wireless devices and enables the transmission of images from RISCO Camera Detectors. The module is installed as a Bus device, and can be placed flexibly to maximize RF performance.
The Wireless Video Module can be mounted in its own, or inside the Control Panels plastic enclosure. For optimal image transfer, the module can be installed on the fast bus.
Up to 8 Camera Detectors can be allocated to a single Wireless Video Module. On LightSYS up to 16 Wireless Video Modules can be installed and up to 8 modules on each Bus line.
The Wireless Video Module is compatible with LightSYS as of Firmware version 1.4.
Features:
- Supports up to 32 RISCO wireless devices
- Enables the transmission of images from RISCO Camera Detectors
- Signal jamming detection
- Back and front tamper protection
- Compatible with LightSYS as of Firmware version 1.4.
Specifications
| Main Panel Connection | RS485 - RISCO BUS |
| Operating Voltage | 13V /- 10% |
| Current Consumption | Typical: 40 mA; max 65 mA |
| Power Output Security | 10 mW (max) |
| Power Output Video | 100mW (max) |
| Frequency Security | 433MHz |
| Frequency Video | 916MHz |
| Operating temperature | -10C to 55C |
| Storage temperature | -20C to 60C |
| Size (LxWxD) | 125 x 78 x 25 mm |
