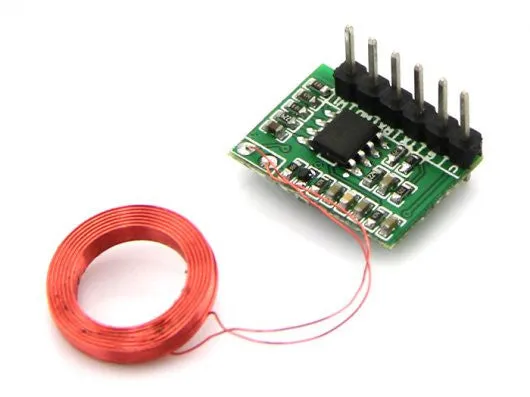

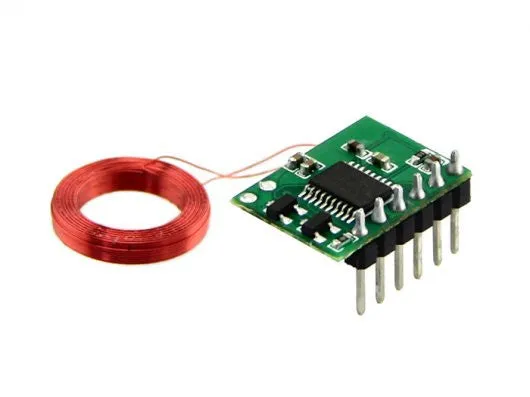

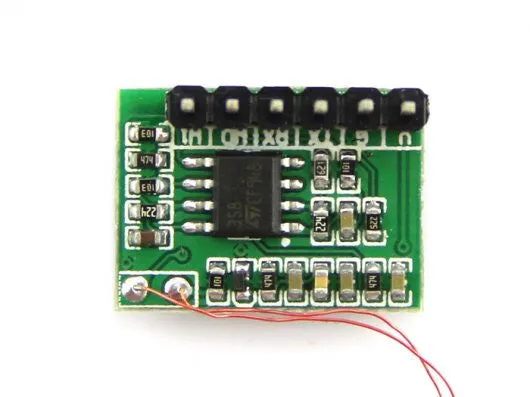

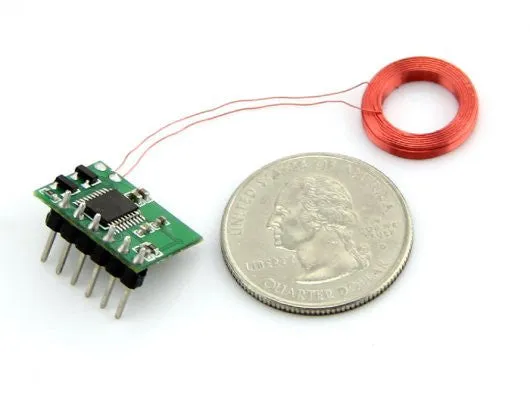

This RFID module is designed for reading code from 125Khz card compatible read-only tags and read/write card. It will notify whenever 125Khz tag approaches, the tag serial number will be send via TX pin or Wiegand pin. Super small size design, it is widely applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.
Features:
- Small Outline Design
- Pre-Soldered Mini Antenna
- UART TTL Interface
- Maximum Effective Distance Up To 35mm
- Support EM4100 Compatible Read Only or Read/Write Tags
Specification：
- Working Frequency: 125Khz
- Baud Rate: 9600
- Interface: TTL or Wiegand26
- Working Voltage: DC 3.3V - 5V
- Working Current: 19mA - 25mA
- Reading Distance: Max.35mm
- Working Temperature: -10℃ to 70℃
- Storage Temperature: -20℃ to 80℃
- Humidity: 0% - 95%
- Antenna Diameter: 15mm
- Antenna Inductance: 388uH
- PCBA Dimension: 18 x 13 x 3.7mm
