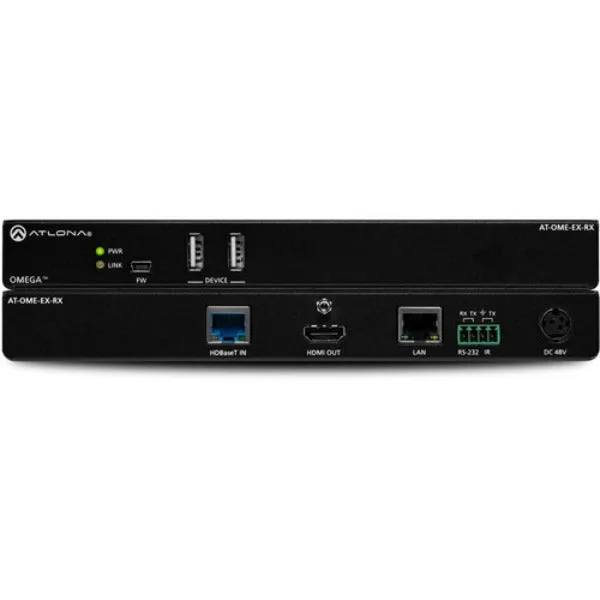

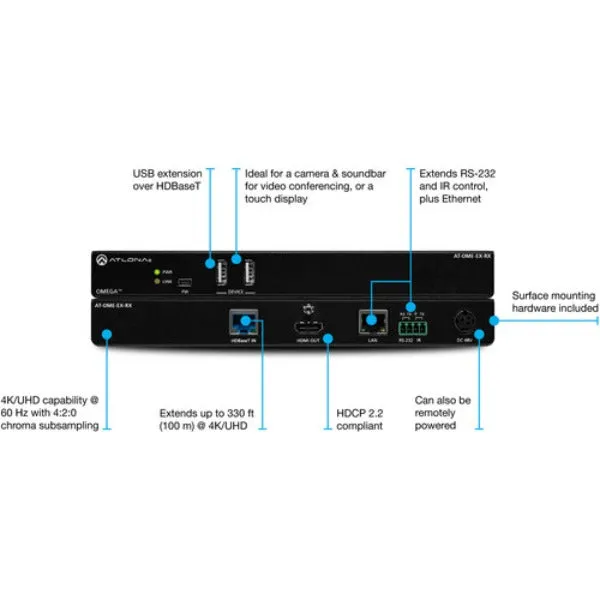

The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With a matching HDBaseT transmitter, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-RX includes two USB interfaces for devices such as a camera, soundbar, or display. This receiver is ideal for use with Omega Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.
Specifications
- Current Draw : 0.83 Amps
- Active Power : 18.67 Watt
- Operating Temperature (Maximum) : 122 F
- DC Voltage : 48 Volts
- Product Weight : 1.91 lbs
- Depth : 5.98 in
- Width : 8.62 in
- AC Voltage (Minimum) : 100 Volts
- Height : 1.02 in
- AC Voltage (Maximum) : 240 Volts
- Operating Temperature (Minimum) : 32 F
- Certifications : CE, FCC, cULus
- Fiber Optic Connector Type - Other
- Fiber Optic Signals Supported - Audio
- Fiber Optic Signals Supported - HD Component Video
- Fiber Optic Signals Supported - HDMI
- Fiber Optic Signals Supported - RS-232
- ROHS Compliant - Yes
- HDBaseT - Yes
