Features:
- EMI shielded interior protects against RF interference and emissions
- Includes a dark grey ABS plastic case and enhanced keypad
- Redesigned belt case with an accessories pouch and protection for connectors
- Coax and twisted pair testing using same TDR (all types of coax, OSP, twisted pairs [CAT 2 to CAT 6A], and single wires in bundles or harnesses)
- Accurate and clearer trace indication of faults with MicroFault locating for finding even small coax kinks
- Has data transfer abilities: saves, uploads, and emails traces and can upload, download, and customize cable lists
- Saved traces are also saved setups for recall
- Shows reverse ingress or cable signal
- TDR frequency does not interfere with cable signal
- Isolate drop or pairs quickly using Tone function
- Setup Wizard makes training interactive
- The unit weighs only 2.2 lb and can be worn on a belt

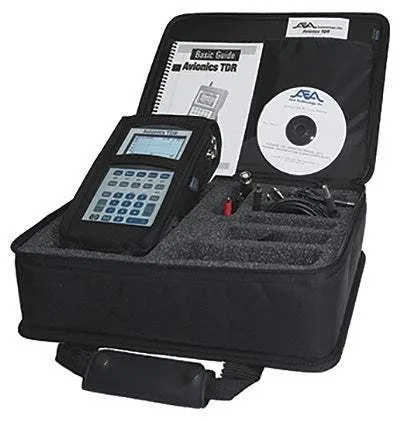

Accessories:
- TDR unit
- Soft carrying case
- Belt case style with accessories pouch and connectors protection
- BNC-to-alligator clips test lead
- AC adapter/charger
- USB cable
- Quick Start Guide
- Basic users guide
- Calibration certificate with data
- CD with operating manual
- ETDR PC Vision™ software
- Training presentation
The Avionics TDR (6021-5054) troubleshoots OSP, drop, or twisted pair cables (CAT 2 to Cat 6A) and single wires in bundles or harnesses. It uses step technology to accurately locate and display wire faults and then stores, recalls, and uploads traces to the PC by name, date, and time. It also has MicroFault locating for finding small coax kinks and crushes that might affect service but are difficult to see on a normal TDR trace. Ideal for testing Coax, Twinax, Triax, Telco OSP, or LAN twisted pairs Cat 2 to Cat 6A. Equipped with a user-friendly interface and includes a Setup Wizard, Named Menu Keys, and Context-Sensitive help. Internal cable list holds 64 cable types, can be user edited, and modified lists can be uploaded or downloaded to a PC using ETDR PC Vision™ software.
